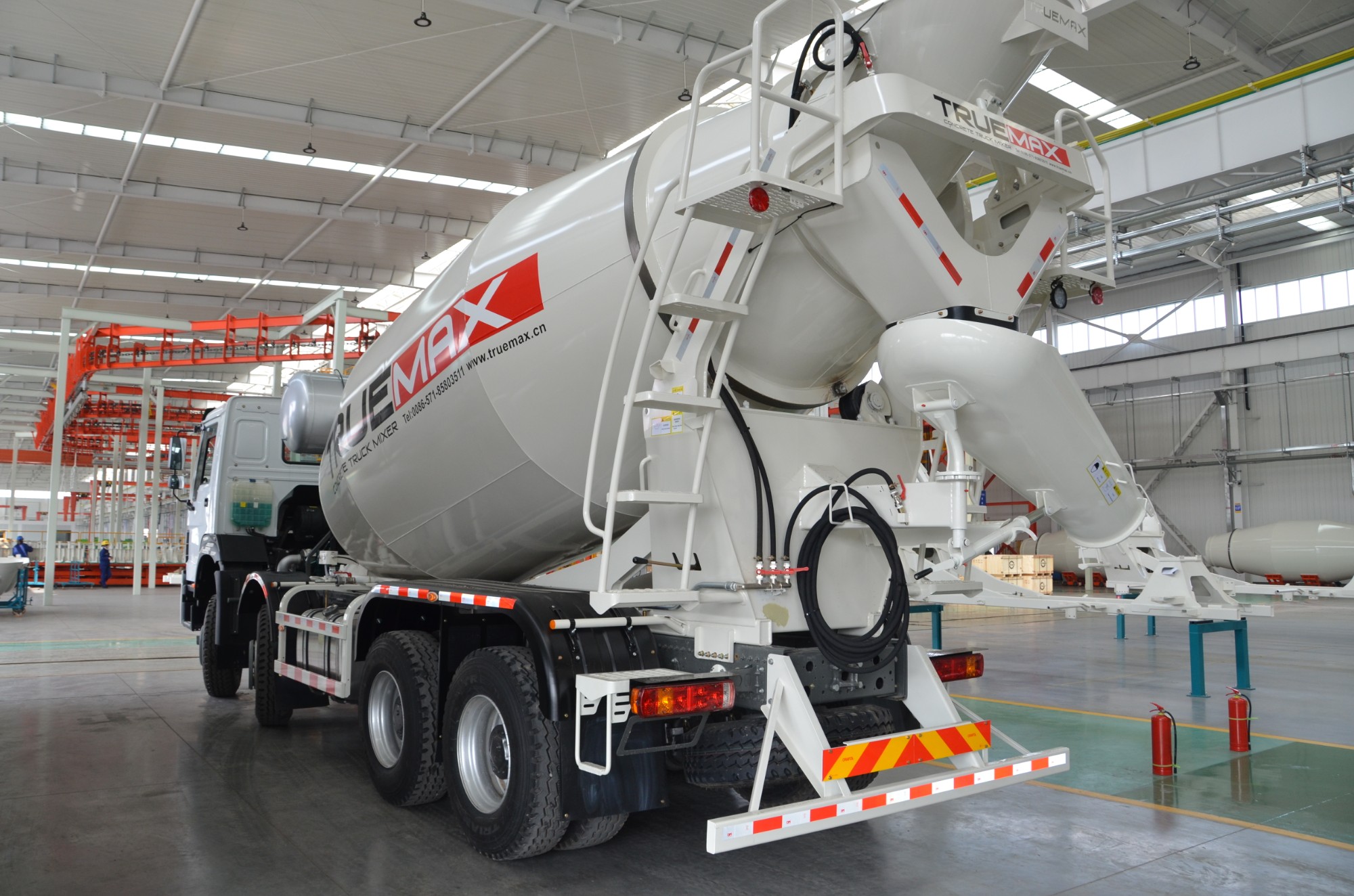

混凝土攪拌車是用來運送建筑用混凝土的專用卡車；由于它的外形，也常被稱為田螺車
主要參數(shù)
型號Model | 單位Unit | 12m3 |
攪拌類型Mixing Type | / | 干/濕Dry/Wet |
攪拌桶總?cè)萘?/span>Geometric Volume of Drum | m3 | 18.4 |
攪拌桶和葉片材料Material of Drum & Blades | / | Q345 |
攪拌桶傾角Inclination Angle for Drum | / | 12 |
填充率Padding Rate | % | 65.2 |
殘余率Residual Rate | % | <0.2 |
進料速度Charging Speed | m3/min | ≥3 |
出料速度Discharging Speed | m3/min | >1 |
攪拌速度Mixing Speed | r/min | 0-14 |
液壓泵Hydraulic Pump | / | 力士樂Rexroth A4VTG090 |
液壓馬達Hydraulic Motor | / | 力士樂Rexroth AA2FM80 |
減速機Reducer | / | ZFP5300 |
散熱器Radiator | / | KT-18 |
水箱容量Capacity for Water Tank | L | 450 |
水供應(yīng)系統(tǒng)Water Supply | / | 氣泵/電泵Air/Electrical Pump |
塌落度范圍Slump Range | mm | 50-210 |
水壓Water Supply Pressure | MPa | 0.3 |
滾筒外徑Max.External Diameter ofDrum | mm | 2342 |
滾筒長度Length of the Drum | mm | 6322 |
外型尺寸Overall Dimension(L*W*H) | mm | 7500*2600*2870 |
